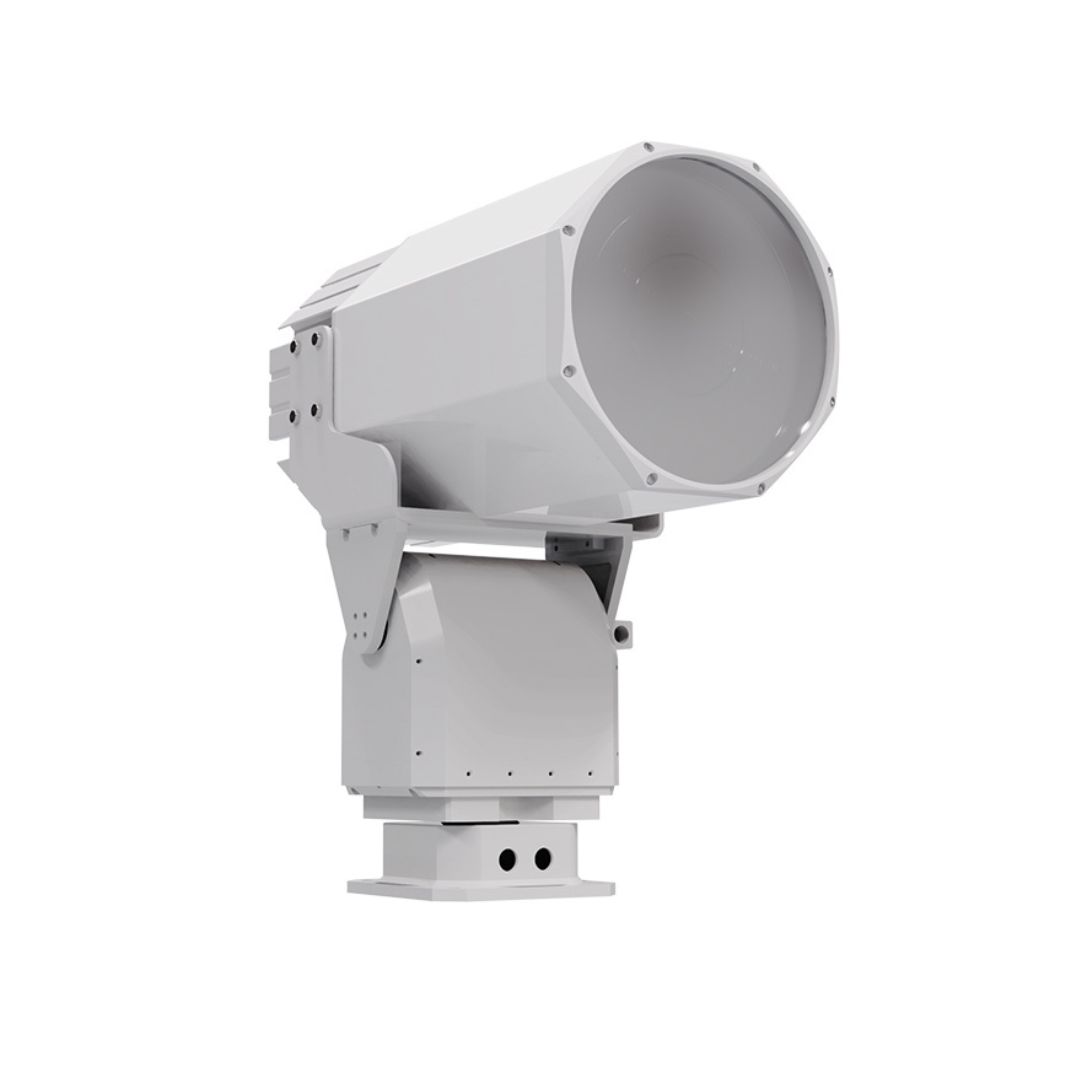

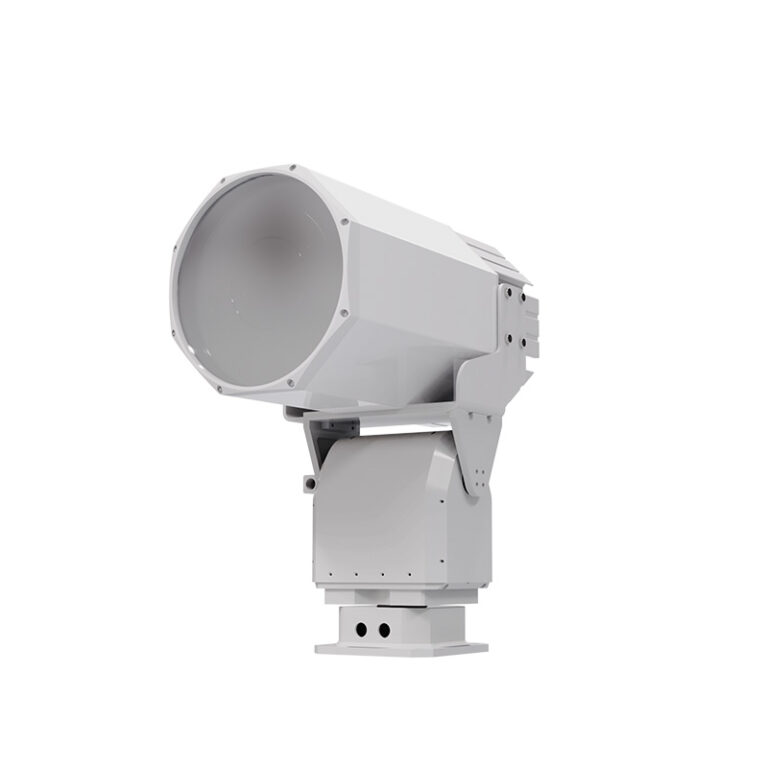

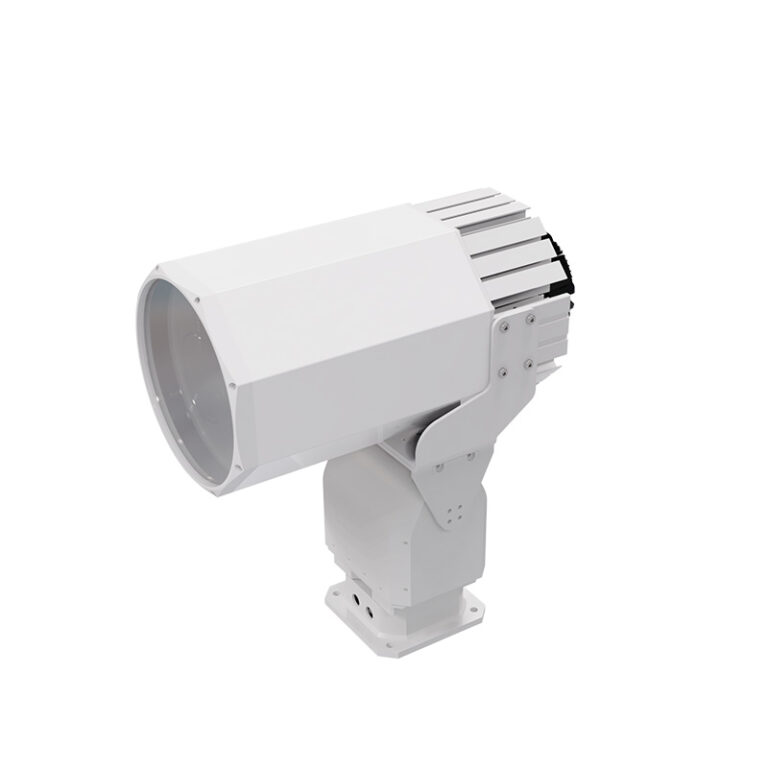

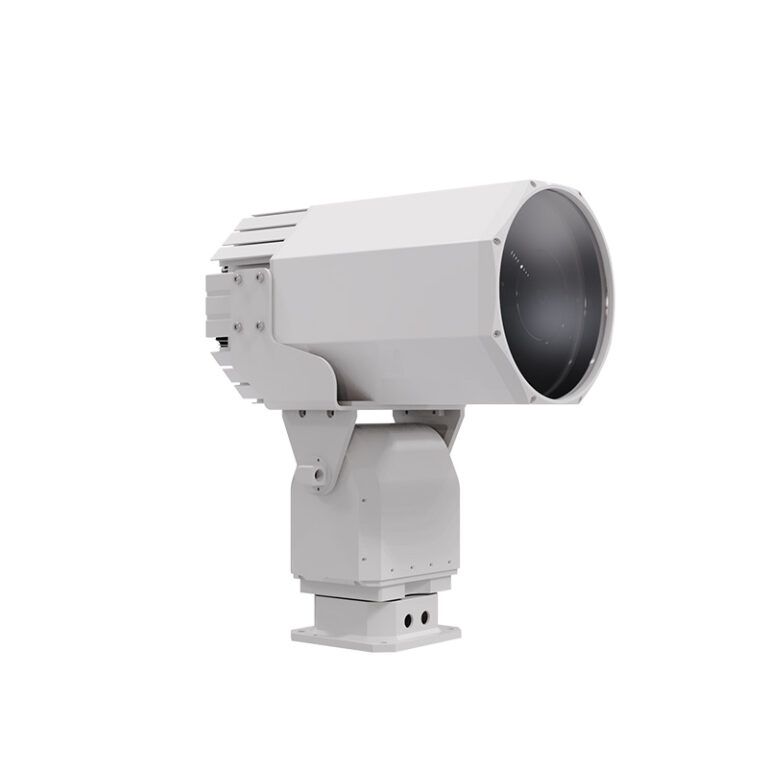

High-Intensity LED Marine Searchlight
Features:
- Protection class: IP66
- Power: 240W / 300W available
- Irradiation distance: ≥2000M (1LUX)
- Beam angle: 3.5° / 2.5°
- Slip-rings provide continuous remote 360° horizontal rotation with no stop points
- Auto-return to home position
- Auto-scan with user programmability
- Advanced proportional-speed control
- Approved for temperatures down to -35°C and up to +55°C
- Materials: marine grade aluminum and stainless steel with salt-resistant powder coat finish
- Lower power consumption: LED’s consume 75% or more less power than Halogen lamps
- Longer life: LED’s last tens-of-thousands of hours compared to approximately 250 to 750 hours
depending upon the Halogen lamp. This reduces lamp replacement costs, increases reliability
Description
The High-Intensity LED Marine Searchlight produced by TUBU is widely used in national defense, ocean, military, maritime affairs, water conservancy, (reservoirs, hydrological stations), scientific research oil fields, docks, ships, large surface ships, maritime search and rescue and other fields.
300W searchlight, the irradiation distance is up to 2000 meters (1LUX). The beam is intense and powerful enough to dazzle people and ward off pirate attacks. Allows ships to search and detect incoming threats such as piracy.
The early primary use of searchlights was in combination with shipboard radar, enabling ships to detect potential threats early on. When going into a panic, give the crew a few extra minutes to call for help and assistance.
Almost 3 times more powerful than halogen searchlights, the TUBU marine searchlight provides a faster, wider, and longer field of view to assist search and rescue operations in locating trapped persons. Longer range than halogen searchlights. The 1lux light intensity of the TUBU marine searchlight can cover a distance of more than 2,500 meters, and the energy consumption is 60%~80% lower than that of similar searchlights.
Product Code | TB-SL240WCH3 | TB-SL300WCH3 | TB-SL240WAQ3 | TB-SL300WAQ3 |
|---|---|---|---|---|
Product Picture |  |  |  |  |
Wattage(W) | 240W | 300W | 240W | 300W |
Input Voltage | AC100 ~ 277V (50/60Hz) | |||
Beam Distance | ≥1000m (1LUX) | ≥1000m (1LUX) | ≥2000m (1LUX) | ≥2000m (1LUX) |
Light Source | LED | |||
Power | / | 60W | / | 60W |
Weight | 25kg | 40kg | 25kg | 40kg |
Working Temperature | -35℃～+55℃ | |||
Color Temperature | 6500K | |||
Beam Angle | 3.5° | 2.5° | ||
Lifespan | >30,000 hours | |||
IP Rating | IP66 | |||
Housing Material | 1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish | |||
Adjustable Speed | Horizontal: 0.1°～25°/S, vertical 0.1°～15°/S | |||
Adjustable Angle | Horizontal: 0～180°or 0～360°, vertical +30°～-30°, or customizable | |||
Preset Position | 200pcs | |||
Repeated Positioning Accuracy | ±0.2° | |||
Communication Protocol | Pelco-D, Pelco-P for option | |||
Communication Baud Bate | 2400 / 4800 / 9600 / 9200 bps for option | |||
Communication Interface | RS485 / RS422 | |||

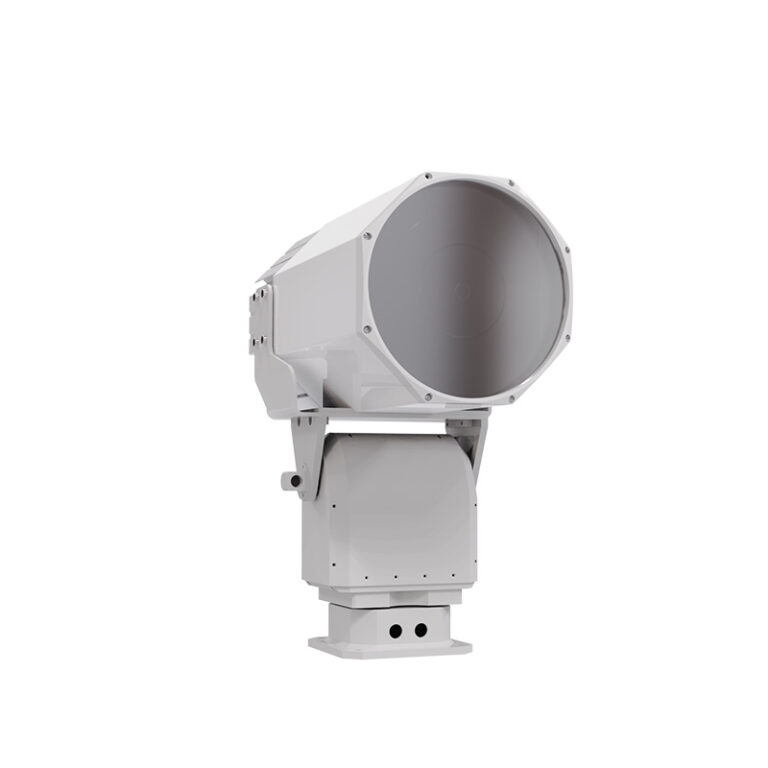

IP66 Protection LED Marine Searchlight
The protection level reaches IP66, which is highly dustproof and waterproof, ensuring its durability and performance in various environments.
