Application
• The Xenon searchlight is suitable for all type of vessels.
• Dimensions and lamp power depends on type of ship and area of application.
Features & Benefits
• Applicable to sub-zero temperatures of-15°C .
• Self regulating anti condensation heater in drum.
• Xenon “Ice Searchlight” can through a unique colordistribution rapidly de-tect ice and illuminate surface objects.
• Its unique long beam range makes it in many areas of application a better choice than halogen.
• Electromagnetic compability (EMC).
• Remote controlled motorfocus.
• Self-regulating heating in motorhouse.
• May be operated from control panels.
Options
• Pedestal
• Additional control panels
• Canvas cover
• Radio control system
Technical Data | |

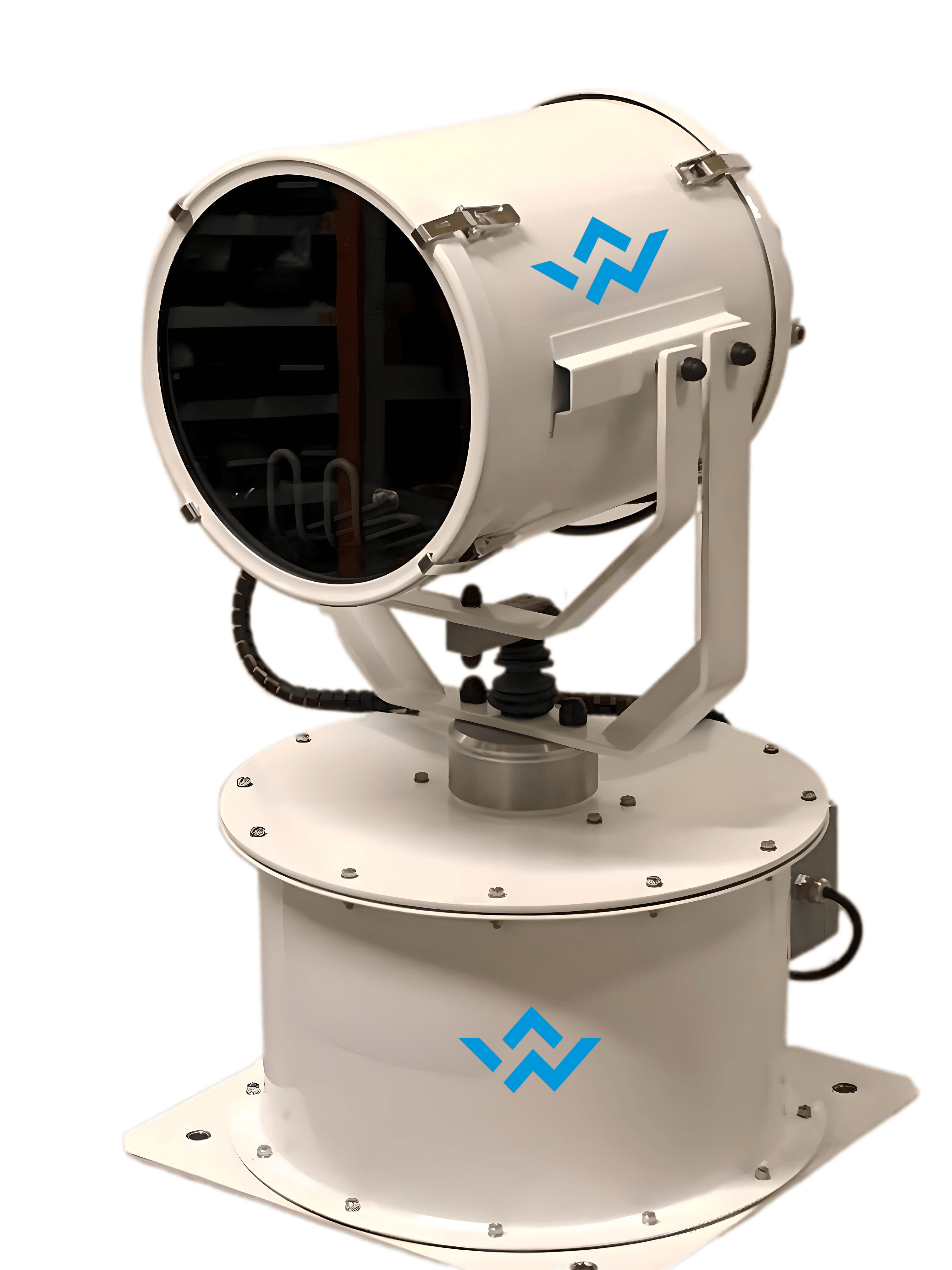

Control panel: | UAVX SX2000WA |
Material: | Seawater Resistant Stainless steel, Toughened soda lime glass, silverplated glass. |
Certificate: | Marine Approved ABS certification no: SQ1798333-PDA. |
Electrical Data: | 230 V AC, 202-254V AC 50 HZ |
Operation Mode: | Remote Pan: 370 deg Tilt: +20 -30 |
Range(1 Lux): | 9,600 m |
Ingress protection: | IP66 |
Operating temperature: | -15°C up to +50°C |
Lamp lifetime: | Approx. 2400 h |
Weight searchlight: | 77 kg |
Wattage: | 2000W Xenon Powered |
Luminous Flux: | 80,000 Lumens |
Optical | |||||||||
Mirror size | Watt | Volt | Peak Beam Candle Power | Range M 1 lux at target | Lux/ Ø at 250m (Divergence 3°) | Divergence | Pan° | Tilt° | Part no. |
521mm (20”) Xenon | 2000 | * 230 | 80x106 | 9600 | 2116 lux/ Ø13m | 2.7° | 370 | +20 -30 SX2000WM | |
Auto Type | 2000 | * 230 | 80 x106 | 9600 | 2116 lux/ Ø13m | 2.7° | 370 | +20 -30 SX2000WA | |
Optical Performance: All data shown above is theoretical and calculated to IES Formulae, *Other Voltage on request.
